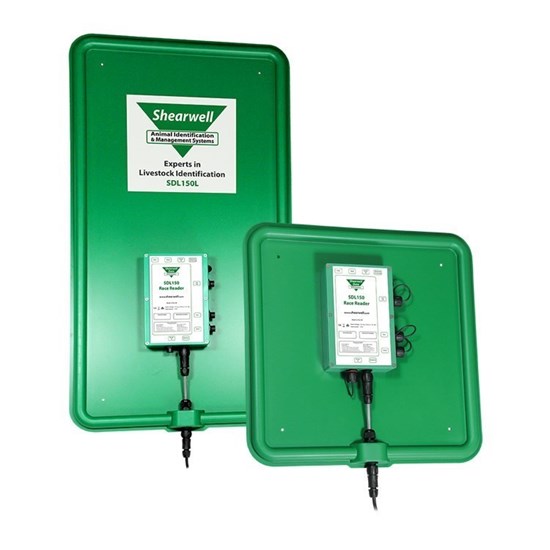

Race Readers - SDL150

Shearwell’s modular Race Readers, with large and small versions they are suitable for both sheep and cattle.

The EID number can be sent by Bluetooth to a Shearwell app for fast, hands free recording. Designed to cope with a high volume of animals, these units can be expanded as required.

Both large and small versions are available as a pair of antennas with a built in reader; as a single antenna with a built in reader; or as an additional antenna. They can be configured quickly and easily within an existing set-up (non-metallic race) for fast, effortless recording of EID tags as stock run through the race.

Dimensions:

SDL150S - Small:
• Height 53cm
• Width 52cm
• Weight Pair - 6.8kg

SDL150L - Large:
• Height 98cm
• Width 52cm
• Weight Pair - 10.45kg

Please call for more details: 01643 841611

Tag Output

The SDL150 outputs each tag it reads over Bluetooth, Bluetooth LE or an RS232 serial cable. The format is set to ISO Format 15 or 16 decimal characters terminated with CR or LF.

Connectors

• Serial Port: 9 way D male
• 12V DC
• IEC male mains power socket
• External antenna connector

Power Supply

• 12V DC
• 230V AC 50Hz
Picture of SDL150S - Small Race Reader - Pair
SDL150S - Small Race Reader - Pair

Recommended for maximum reading coverage
Please call for more details: 01643 841611

£1,550.00 excl VAT
Picture of SDL150S - Small Race Reader - Single
SDL150S - Small Race Reader - Single

Please call for more details: 01643 841611

£1,350.00 excl VAT
Picture of SDL150S - Small Race Reader - Additional
SDL150S - Small Race Reader - Additional

(antenna only)
Please call for more details: 01643 841611

£275.00 excl VAT
Picture of SDL150L - Large Race Reader - Pair
SDL150L - Large Race Reader - Pair

Recommended for maximum reading coverage
Please call for more details: 01643 841611

£1,700.00 excl VAT
Picture of SDL150L - Large Race Reader - Single
SDL150L - Large Race Reader - Single

Please call for more details: 01643 841611

£1,500.00 excl VAT
Picture of SDL150L - Large Race Reader - Additional
SDL150L - Large Race Reader - Additional

(antenna only)
Please call for more details: 01643 841611

£325.00 excl VAT
