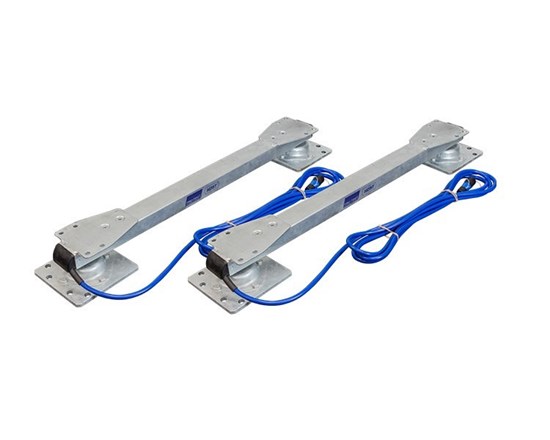

Tru-Test - HD5T Load Bars
5,000 kg capacity
Tough, reliable and easy to install under your cattle crush.
Tru-Test load bars are recognised for their rugged durability and performance in harsh environments. The HD5T Load Bars are designed to be tough, reliable and easy to install under any crush. The simplicity of set up means you can easily install with no assistance needed.
With a capacity suitable for the heaviest of cattle crushes, you will have outstanding performance with the best weighing set up for your animals.
Please call the office on 01643 841611 to order or for delivery charges to your area
SKU:
SDL-LB-1010HD
£1,242.00 excl VAT
More information
KEY FEATURES
✔
Extremely easy to install.
Simply bolt it to the crush and then bolt to the level concrete surface.
✔
More capacity.
The 5,000 kg capacity heavy duty load bar is suitable to mount under the heaviest of crushes.
✔
Sealed load cell.
Protects the load cell against moisture damage allowing the load bars to remain outside under the crush.
✔
Corrosion resistant.
Galvanised steel construction means the HD5T Load Bars can endure the harshest agricultural environment.
✔
Robust.
Heavy duty TPR/PVC cables are a standard feature, which minimise the likelihood of cable damage.
⇩ Download Manual
⇩ Dimensions Drawings
TECHNICAL SPECIFICATION
CABLE LENGTH
5 m (16 ft)
OVERALL HEIGHT
110 mm (4.3″)
BAR SECTION WIDTH
75 mm (3”)
RESOLUTION
Base resolution with Tru-Test scales: 2 x HD5T load bars = 0.5 kg (1 lb)
TOTAL CAPACITY
2 x HD5T load bars = 5,000 kg (11,000 lb)
NOMINAL LENGTH
1115mm (43”)
ACCURACY
+/- 1 % or 2 resolutions, whichever is greater
WEIGHT
Pair: 36 kg (80 lb)
