Tru-Test - MP800 Load Bars

£1,088.00 excl VAT

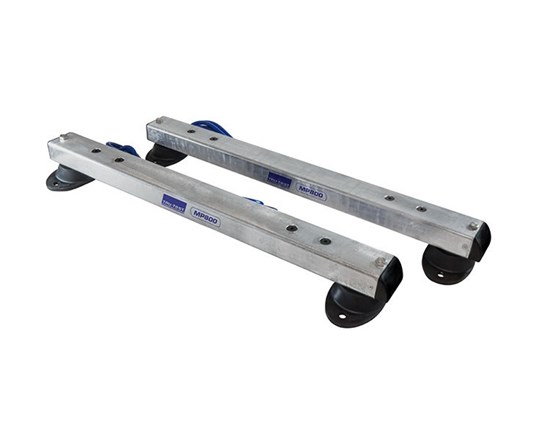

Picture of Tru-Test - MP800 Load Bars
Versatile. For all animal types.

A multi-purpose load bar that can be used under cattle platforms, sheep crates and wool presses.

Tru-Test load bars are recognised for their rugged durability and performance in harsh environments.

The internal cells are made from aircraft grade aluminium and are fully sealed to keep out moisture. Heavy duty TPR/PVC cables are a standard feature, which minimise the likelihood of cable damage.

For cattle crushes /crates the Heavy Duty load bars or Extra Heavy Duty load cells should be used.

Please call the office on 01643 841611 to order or for delivery charges to your area

Product Code SDL-LB-800
Enquire Or call 01643 841611

Product Description

KEY FEATURES


✔ Versatile. Can be temporarily installed and when used with the lightweight Tru-Test aluminium platform can be easily transported between different weighing sites.
✔ Compatible. Can be used with any weigh scale in the Tru-Test range without callibration.
✔ Corrosion resistant. Galvanised steel housing protects the bar in the tough agricultural environment.
✔ Sealed load cell. Protects the load cell against moisture damage allowing the load bars to remain outside.
✔ Easy to set up. Simply requires a firm level surface and a rigid crate or platform.

TECHNICAL SPECIFICATION


FOOT PAD DIMENSIONS 170 mm x 100 mm
CABLE LENGTH 5 m (16 ft)
BAR SECTION WIDTH 75 mm
CABLE TYPE 4 core cable. TPR inner and conductor cover, PVC middle layer for impact protection, blue TPR outer for protection from sunlight and cold.
LOAD CELL TYPE Aluminium shear beam
STORAGE TEMPERATURE -20 to +50 °C (-4 to +122 ºF)
OPERATING TEMPERATURE -10 to +40 °C (14 to 104 ºF)
RESOLUTION Fine mode: 0.1 kg (0.2 lb) when used with Tru-Test indicators Normal: 0.5 kg (1 lb)
PLATFORM FIXING CENTERS 761 mm
TOTAL CAPACITY 3,000 kg (6,600 lbs)
NOMINAL LENGTH 800 mm (32")
ACCURACY ±1% or two resolutions, whichever is greater
WEIGHT 16.5 kg (pair)
